RAM Inline Duct Fans
RAM Inline Duct Fans
Couldn't load pickup availability

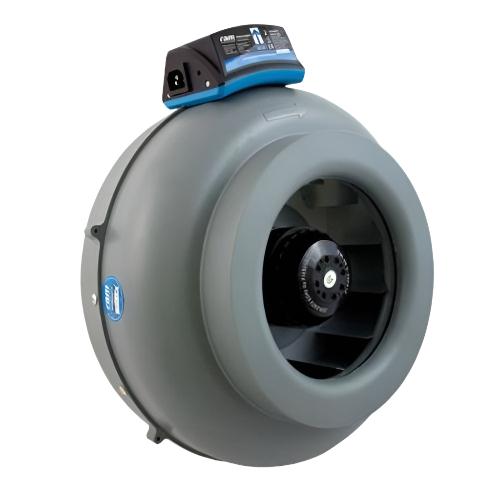

RAM Inline Duct Fans.
An optimized design for high pressure and quiet air movement, the RAM Inline Duct Fan features the patented Fast-Flow even air-flow fin.
This patented technology slows down the air coming into the fan resulting in a smoother and more direct flow of air into the ducting.
The RAM Inline Duct Fan is supplied with a mounting bracket and fitted with an IEC Socket. (Leads available separately)
Available in:
100mm-277m³/hr
150mm-580m³/hr
200mm-998m³/hr
250mm-1088m³/hr.
RAM Inline Duct Fans Specifications:
| Size | Op. temp range | Protection class | Impeller | Power consumption | Current (A) | RPM | Airflow |
| 100mm | -20⁰C – 50⁰C | IP44 | PA66 | 69W | 0.32 | 2550 | 277m3/hr |
| 150mm | -20⁰C – 50⁰C | IP44 | PA66 | 96W | 0.44 | 2210 | 580m3/hr |
| 200mm | -20⁰C – 50⁰C | IP44 | PA66 | 166W | 0.77 | 2280 | 998m3/hr |
| 250mm | -20⁰C – 50⁰C | IP44 | PA66 | 174W | 0.8 | 2350 |
Kindly be advised that this item is not eligible for free shipping. We recommend reviewing our Shipping Policies for comprehensive information. Alternatively, you have the option to collect the item in-store or organize your preferred courier service.
